Kailas Nuco Cam

• The built-in spring makes the head of the cam smaller
• The edge of the cam is processed into rounded edges so that it can better fit in with the rock and enlarge the friction area
• The cams are made of 6061-T aluminum and through CNC digital control technology
• With the slot processed diagonally, the cam has increased friction force and is thus more difficult to move
• The cam pull utilizes strong steel wire ropes and fixed systems, which keeps the cam in correct position
• With a powerful spring, the cam can fully extend itself after being placed so as to stay against the rock. It will not shift because of the shake of the rope or other factors, which plays a decisive role in climbing in complex areas
• Hybrid size, 1.8HY and 2.2HY, with asymmetrical design, the two cams of one side are big while the two of the other side are small, which is particularly designed for the internally-small and externally-big horn-shaped crack. Please place the side with small cams towards the interior of the crack
• To obtain stronger friction force, we don’t color the axle (coloring means anodic oxidation treatment, which will change the surface hardness of the aluminum alloys and as a result it? s not easy for the cam to ?penetrate? into the rock)
• The unique high-frequency hot melt processing procedure guarantees the high intensity
• The movable two fold nylon protective cover prevents the cam from wear and tear
• High-intensity Dyneema slings are adopted
• The shorter trigger stroke helps to achieve more accurate and stable operation
• The size number is represented by the crack width (cm) for optimal setting for each cam, i.e. the value obtained when the extension scope of the cam is about 33%. Therefore the size number shows the application condition more clearly
• 3 sizes available. Each size is color-coded for quick identification.



Specs

• Certifications: CE0082 EN12276

SKU	Size	Load	Dimension 1	Dimension 2	Weight

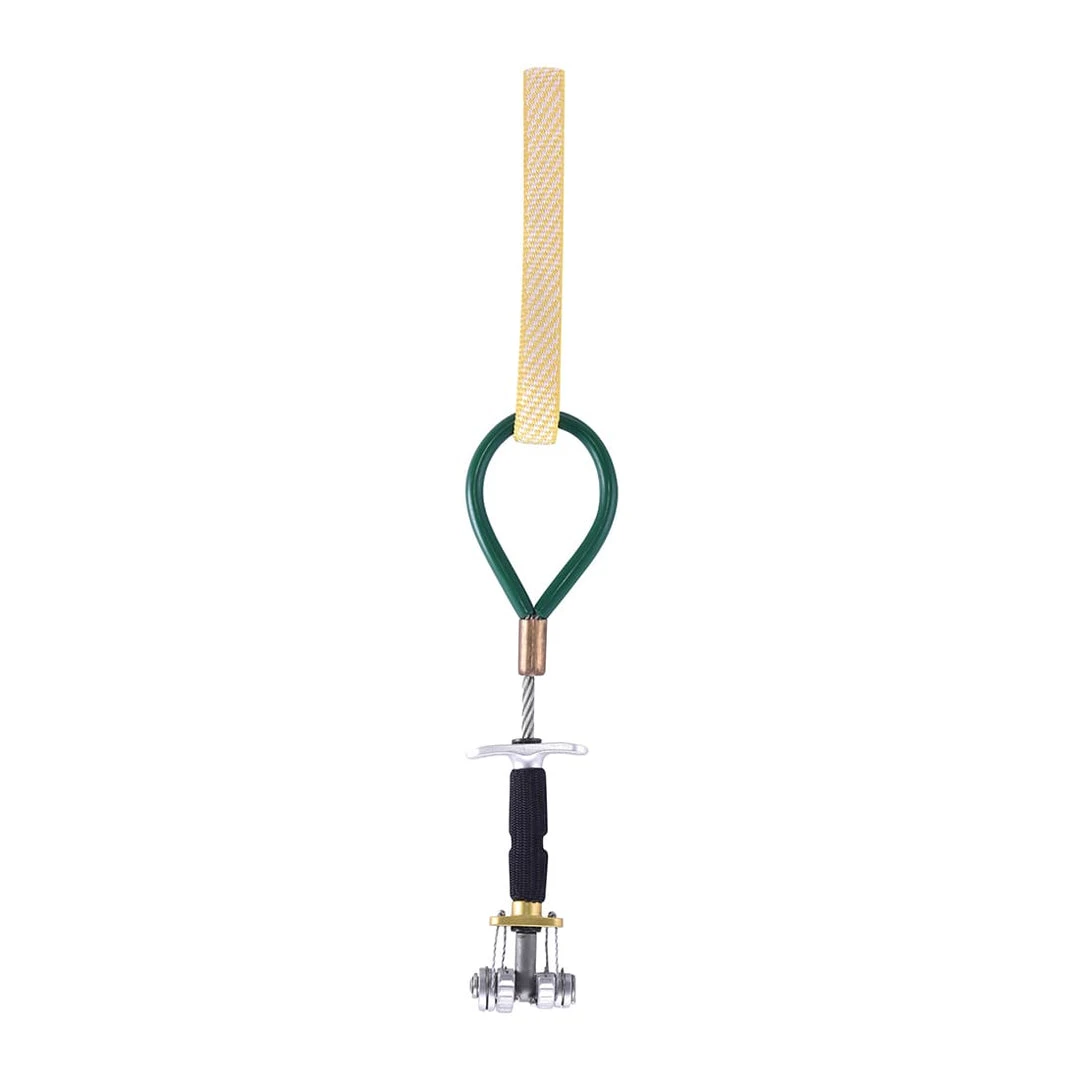

KE520122	1.8HY	7kN	16.6mm	26.1mm	68g

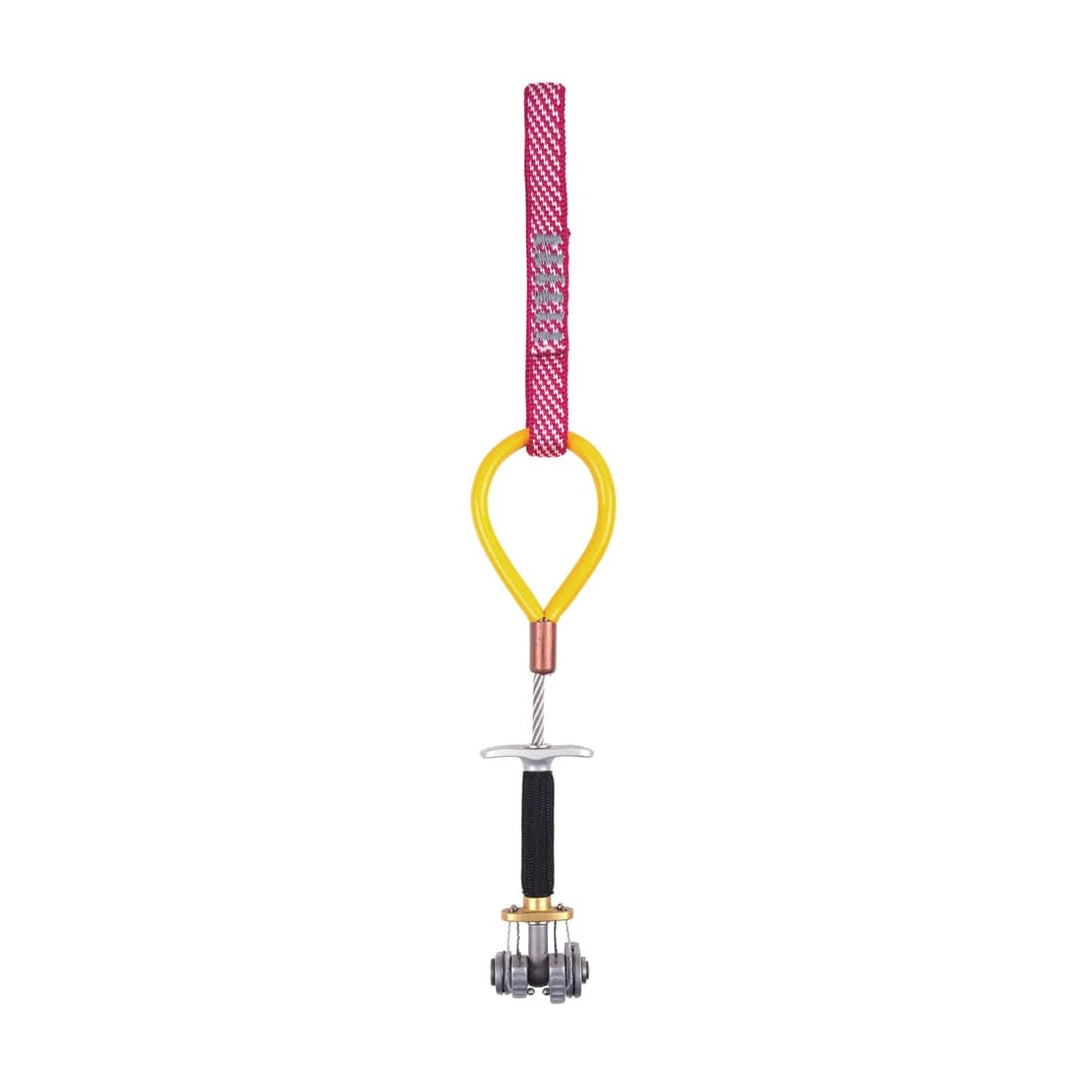

KE520142	2.2HY	9kN	19.9mm	31.6mm	75g

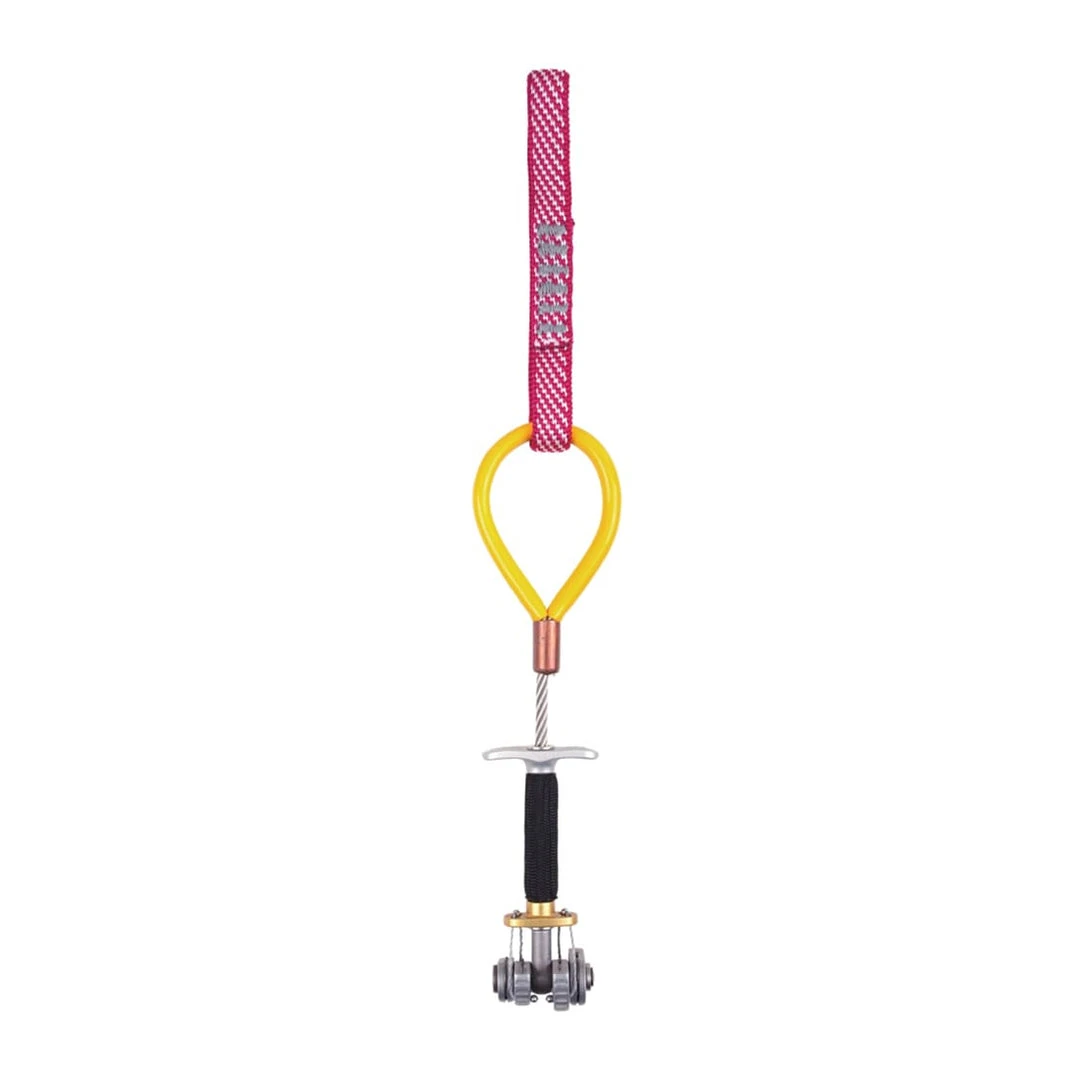

KE520152	2.4	11kN	19.9mm	31.6mm	78g
